Pixel Perfect - On Top Menu

Pixel Perfect - On Top Menu

I already have half a post on text components but I’ve put that on hold for now as I’ve been working on the on-top side menu to supersede the existing side menu bar implementation. I’ve made some fixes for it over the week, I wanted to make it the default for Codename One apps but it still isn’t "perfect". We will make it the default within the next couple of weeks so please test it after this weeks update and let us know ASAP if you spot any issues!

After the latest round of work the side menu now resides on top of the entire form and not just over the content pane. I was able to address some issues in the form layer implementation and it should work properly now. I also fixed some pretty hairy issues with events and even a rather insane issue with invokeAndBlock.

To give you a sense of how this looks this is the old side menu in the kitchen sink demo:

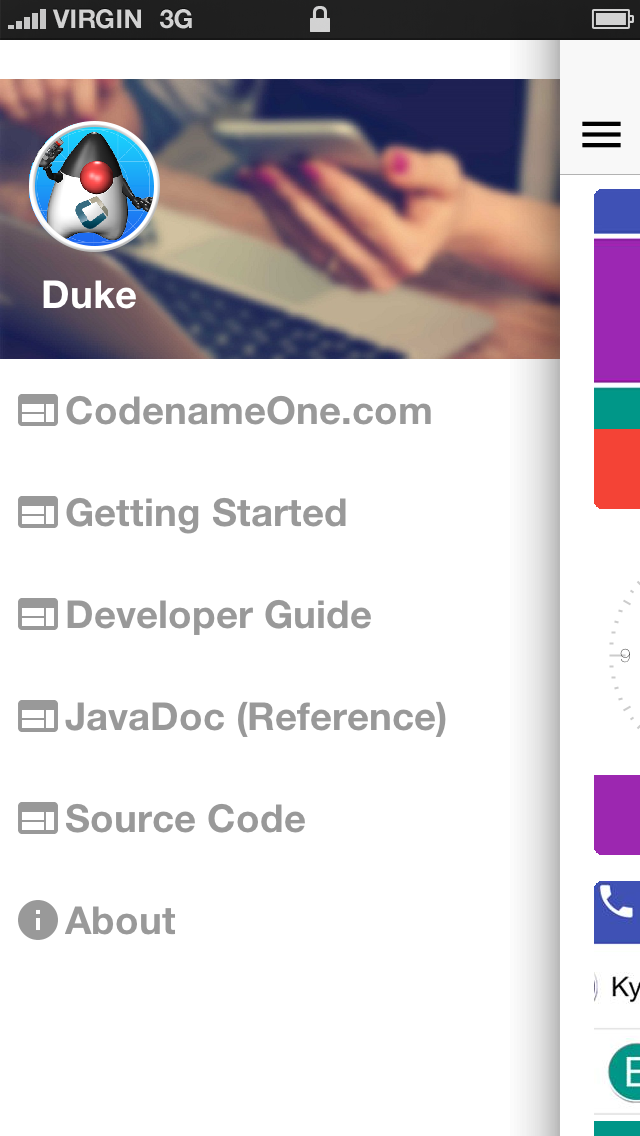

The old side menu in the kitchen sink
Figure 1. The old side menu in the kitchen sink

If we add the call Toolbar.setOnTopSideMenu(true) to the init(Object) callback after this weekend update we should see this:

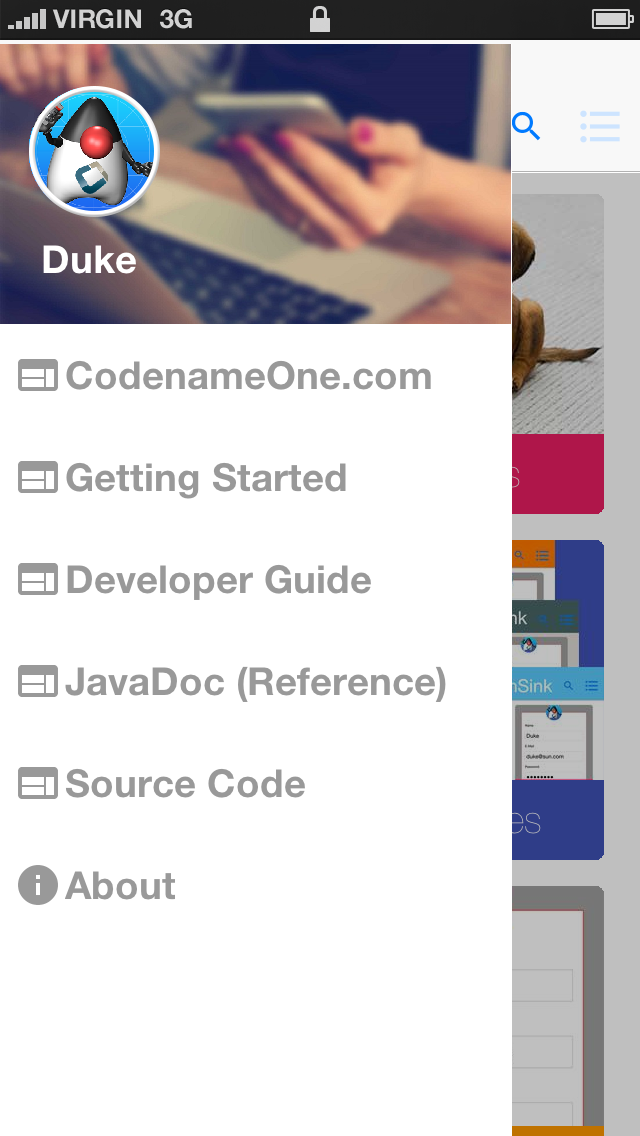

The new on-top side menu in the kitchen sink
Figure 2. The new on-top side menu in the kitchen sink

There is a lot of nuance involved in this new mode, e.g. the underlying form grows gradually darker as you drag on top of it etc.

Flipping the Switch

We’ll flip this to be the default mode within a couple of weeks unless something big happens. At that point if you have dependencies on the old behavior and would like to restore that you would need to explicitly invoke Toolbar.setOnTopSideMenu(false) in the init(Object) method.

As we discussed in the past we want to avoid the "legacy pitfall" many frameworks fall into. In this pitfall frameworks try to be "overly compatible" with nuanced behaviors which means users don’t adopt the newer/better functionality that’s available to them.

With this we hope to resolve some of the open issues in the existing side menu implementation.
